Huayun bead mill and sand mill machine for wet grinding
You may also like
Huayun horizontal bead mill is a grinding and dispersing machine with horizontal cylinder for continuous production.It is the most widely used, most advanced and most efficient grinding equipment.
Working principal
HYSM disc bead mill mainly drives the dispersing shaft for high-speed movement by the motor. Under the action of the dispersing disc, pin or turbo,the grinding medium performs high-speed movement, and the friction and shearing force force the material to be repeatedly ground and dispersed.Finally, the grinding medium is separated by the dynamic separator and the screen, so that the qualified material flows out from the discharge pipe. and the material is pumped into the cylinder through the feeding system without interruption, thereby realizing long-term continuous grinding work.
Strong applicability
In order to ensure the adaptability of the products, Huayun can provide various choices of grinding chambers/dispersion discs/rods/turbine/transport pumps of different materials;we can also supply control operation box, frequency converter, pic intelligent control system, electric contact equipment and other optional accessories according to customer's requirements.
Pictures

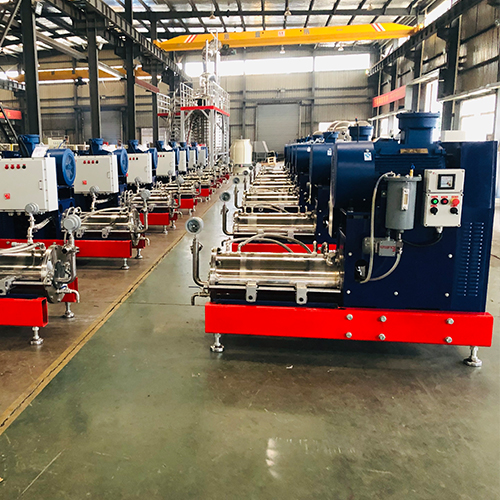

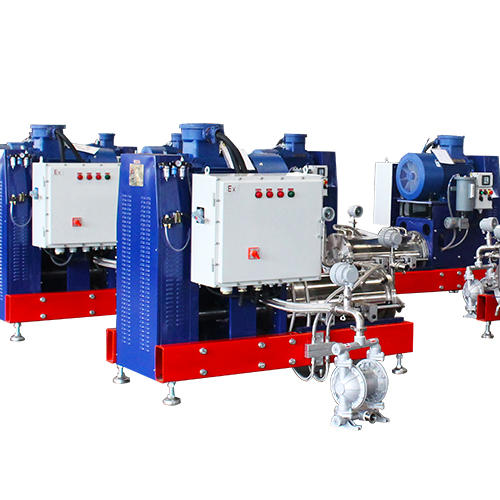

Huayun horizontal bead mill-Disc type
| Model | Chamber volume（L) | Power（Kw) | Spindle Speed（r/min) | Media Loading（L） | Weight（kg) | Dimensions（mm) |
| HYSM10 | 10 | 11 | 1200 | 7-7.5 | 580 | 1350*1280*850 |
| HYSM15 | 15 | 15 | 1200 | 10.5-11.5 | 600 | 1350*1280*850 |
| HYSM20 | 20 | 18.5 | 1200 | 14-15 | 650 | 1450*1280*850 |
| HYSM30 | 30 | 22 | 1100 | 21-22.5 | 1200 | 1570*1200*1390 |
| HYSM40 | 40 | 30 | 1100 | 28-30 | 1270 | 1740*1200*1390 |
| HYSM50 | 50 | 37 | 900 | 35-37.5 | 1350 | 1790*1220*1530 |
| HYSM60 | 60 | 37 | 900 | 42-45 | 1400 | 1890*1220*1530 |
| HYSM80 | 80 | 45 | 700 | 56-60 | 1900 | 1890*1300*1690 |
| HYSM100 | 100 | 55 | 700 | 70-75 | 2100 | 2010*1500*1690 |
| HYSM120 | 120 | 55 | 700 | 84-90 | 2500 | 2100*1500*1690 |
| HYSM150 | 150 | 75 | 650 | 105-112.5 | 3200 | 2200*1650*1750 |
| HYSM200 | 200 | 90 | 500 | 140-150 | 3500 | 2260*1650*1750 |
| HYSM300 | 300 | 110 | 450 | 210-225 | 4200 | 2500*1700*1800 |
(Note:Inverter with control cabinet suggested,if motor power is 30KW and above.Frequency conversation starts makes currency more stable,and machine will work in the most reasonable condition
)
HYBS Horizontal bead mill-Pin type
Model Parameters | HYBS-10 | HYBS-30 | HYBS-60 | HYBS-100 | HYBS-150 | HYBS-300 |
| Chamber Volume（L) | 10 | 30 | 60 | 100 | 150 | 300 |
| Power（KW) | 22 | 45 | 55 | 75/110 | 160 | 315 |
| Grinding Media（mm) | 0.4-2.0 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 |
| Total Weight（Kg) | 1200 | 2400 | 2800 | 3600 | 4500 | 8400 |
HYWL Horizontal bead mill-Turbo bead mill
| Model | Chamber volume（L) | Power（KW) | Spindle speed（r/min) | Media loading（L） | Weight（Kg) | Dimensions（mm) |
| HYWL30 | 30 | 37-45 | 700-1200 | 21-22.5 | 1200 | 1570*1200*1390 |
| HYWL60 | 60 | 55-75 | 500-800 | 42-45 | 1400 | 1890*1220*1530 |
