Explosion-proof Pressure Testbay Box

· Explosion-proof Pressure Testbay Box (PTB) is a type of a pressure test equipment for injection of different media such as clean water and glycol.

· It has solid structure, strong impact resistance and wide pressure test range to meet high pressure test application in many industries.

· It’s available to do pressure and temperature test for various pressure vessels, pipelines, valves, downhole tools, cylinder, etc.

· As a kind of customized industrial product, our containerized Pressure Testbay Box have been served in chemical, construction, plumbing, petroleum, coal, smelting, shipbuilding and other industries.

Main Features of the Equipment

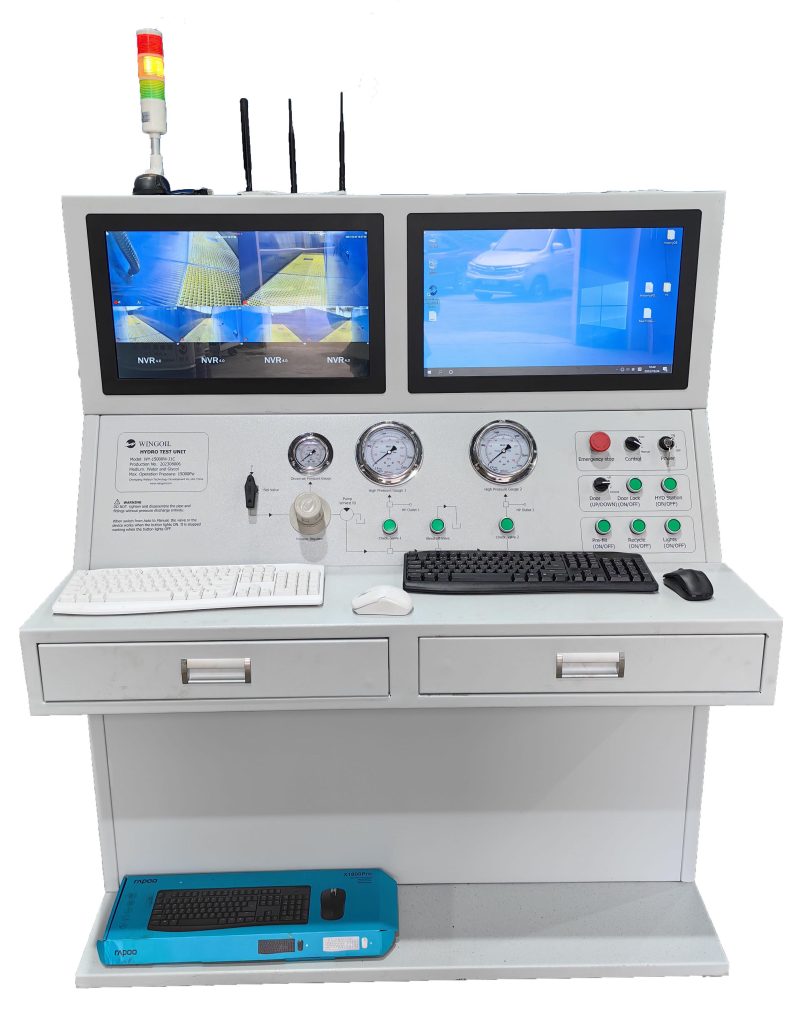

1. The control panel of the pressurization unit adopts a modular design, and the operation process is clear.

2. The unit has the function of boosting clean water and glycol.

3. Equipped with automated functions such as digital remote control, real-time data display, monitoring, generating experimental reports, and querying historical data.

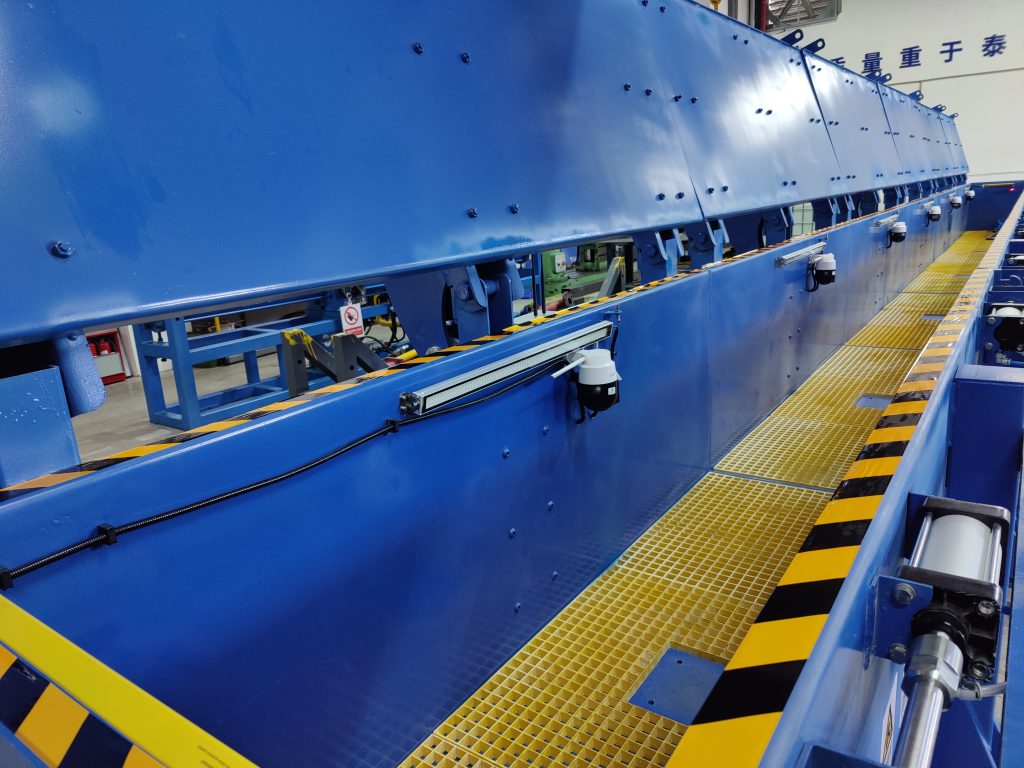

4. High strength protective wall made of steel plate, bulletproof fiber, interlayers and other comprehensive materials, so the thickness reaches 70mm. Equipped with high-strength pressure test protection cabin, which can carry out explosion-proof safety prevention and control of high-pressure test.

5. Remote PTZ video monitoring system to observe the on-site conditions and safety.

6. Compressed air unit and pressure test unit are designed separately for ease of use.

7. Having good pressure performance and matching performance.

8. Install the necessary safety valves and pressure control components.

9. Whether it is the length of the box, pressure test valves, or other parameters, they can be customized.

Working pressure	15000 PSI
Size	18m2m1.5m (single section: 3m2m1.5m)
Weight	12.7 T (single section: 2.1 T)
Number of cameras	6 adjustable cameras with night vision function
Lighting	24V/100W led, quantity: 6
Door opening mode	Hydraulic cylinder telescopic opening
Door opening direction	Upward (angle greater than 90°)

Max working pressure	15000 PSI
Working voltage	380V 50HZ
Working medium	Water & Glycol
Water high pressure outlet	G1/4-60°
Water inlet	NPT1/2”
Air-driven interface	NPT1/2”
Cylinder outlet A and B	φ8mm

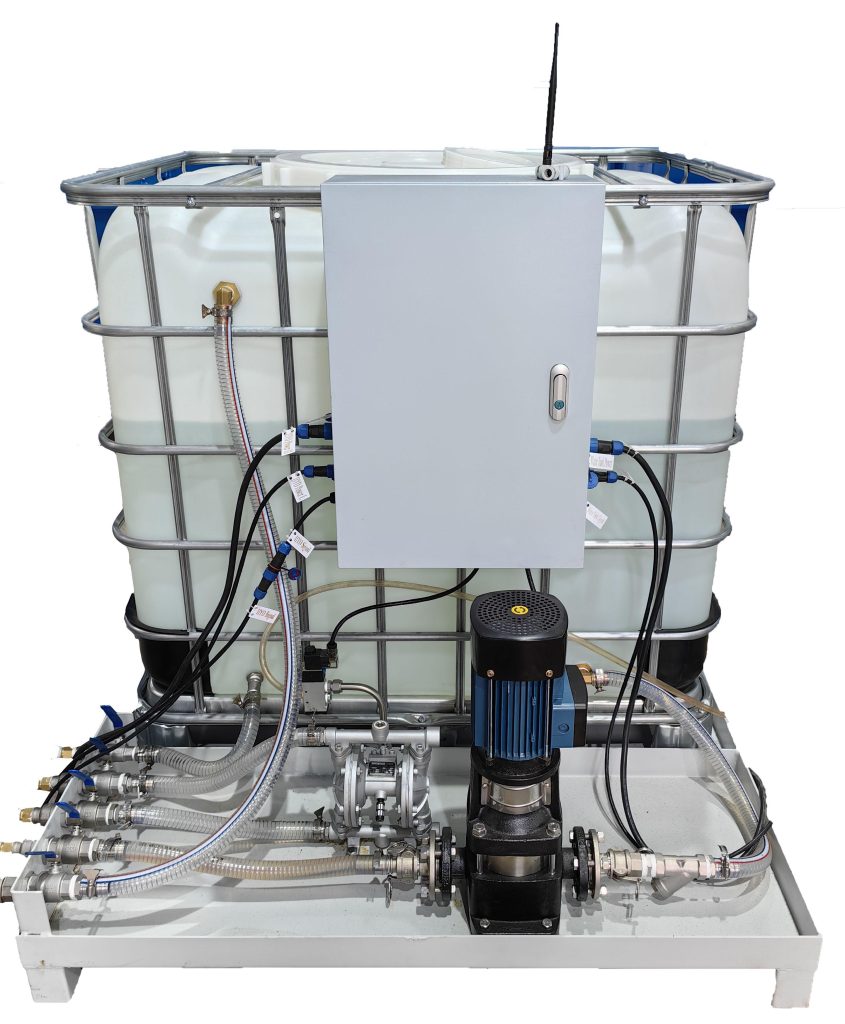

Volume	1000L
Material	HDPE
Water outlets	2*NPT1”(F)
Outlet filtration	40 μm
Size	150013001400mm
